Control cables

The chainflex® control cables are available for the most varied mechanical requirements in various approvals and conformities. Depending on the type of control cable, they are torsion-resistant, suitable for narrow radii or very low temperatures, UV-resistant, flame-retardant and halogen-free. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 4xd
  • Shielded / Unshielded
  • Jacket materials: PVC, iguPUR, PUR or TPE
มาก
น้อย
รับประกัน 36 เดือน
รับประกัน 36 เดือน

คุณสามารถคาดหวังได้จากเรา

ช่วง

หมวด

สายเคเบิลควบคุม
สายเคเบิลข้อมูล
สายเคเบิลมอเตอร์
สายเคเบิลบัส
สายเคเบิลระบบการวัด
สายเคเบิลเซอร์โว
สายเคเบิลแกนร่วม
สายเคเบิลไฟเบอร์ออปติก (FOC)
สายเคเบิลพิเศษ
สายเคเบิลหุ่นยนต์

ฟิลเตอร์

'ข้อกำหนดหลัก
แสดงรายละเอียด
Cable structure
Material
Electrical information
Requirements
List
Tile

จำนวนผลิตภัณฑ์: 21

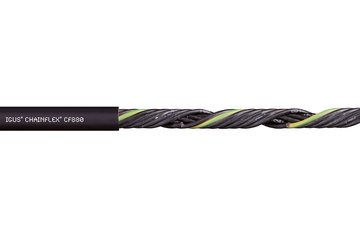

chainflex® control cable CF880
chainflex® control cable CF880
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 11008 and 2464, 300 V, 80 °C UL/CSA<br>Style 11008 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01560 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

จาก 0.23 USD / ft

มีให้ตามคำร้องขอ
ไปยังหน้าผลิตภัณฑ์
chainflex® control cable CF881
chainflex® control cable CF881
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 11008 and 2464, 300 V, 80 °C UL/CSA<br>Style 11008 and 2464, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01560 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

จาก 0.50 USD / ft

มีให้ตามคำร้องขอ
ไปยังหน้าผลิตภัณฑ์

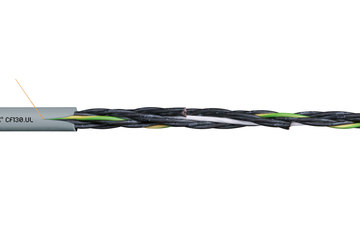

chainflex® control cable CF130.UL
chainflex® control cable CF130.UL
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 20200, 300 V, 60 °C UL/CSA<br>Style 10493 and 20200, 300 V, 60 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.2

จาก 0.27 USD / ft

34 จาก 55 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

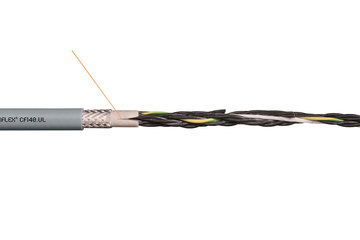

chainflex® control cable CF140.UL
chainflex® control cable CF140.UL
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 20200, 300 V, 60 °C UL/CSA<br>Style 10493 and 20200, 300 V, 60 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.1

จาก 0.86 USD / ft

21 จาก 32 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

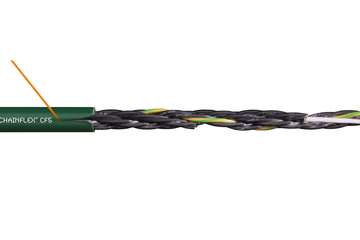

chainflex® control cable CF5
chainflex® control cable CF5
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 2570, 600 V, 80 °C UL/CSA<br>Style 10492 and 2570, 600 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.2

จาก 0.51 USD / ft

37 จาก 42 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

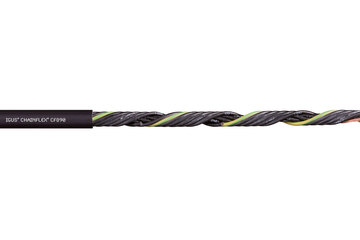

chainflex® control cable CF890
chainflex® control cable CF890
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 11008 and 20940, 600 V, 80 °C UL/CSA<br>Style 11008 and 20940, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01560 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1

จาก 0.35 USD / ft

มีให้ตามคำร้องขอ
ไปยังหน้าผลิตภัณฑ์

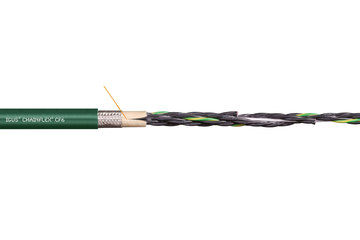

chainflex® control cable CF6
chainflex® control cable CF6
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 11113 and 2570, 600 V, 80 °C UL/CSA<br>Cores&lt; 0.5 mm²: Style 10492 and 2570, 600 V, 80 °C<br />Cores ≥ 0.5 mm²: Style 11113 and 2570, 600 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1. CE<br>Following 2014/35/EU
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.1

จาก 1.63 USD / ft

24 จาก 33 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

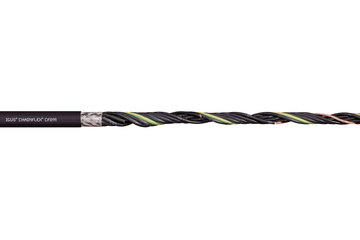

chainflex® control cable CF891
chainflex® control cable CF891
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 11008 and 20940, 600 V, 80 °C UL/CSA<br>Style 11008 and 20940, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01560 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1

จาก 0.64 USD / ft

มีให้ตามคำร้องขอ
ไปยังหน้าผลิตภัณฑ์

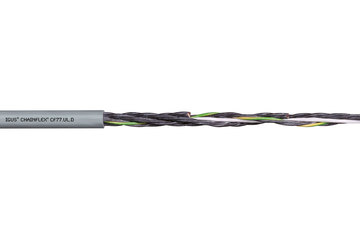

chainflex® control cable CF77.UL.D
chainflex® control cable CF77.UL.D
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 50267-2-1 UL/CSA<br>Style 10493 and 20233, 300 V, 80 °C UL/CSA<br>Style 10492 and 21223, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 5.1.3.3

จาก 0.80 USD / ft

18 จาก 52 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

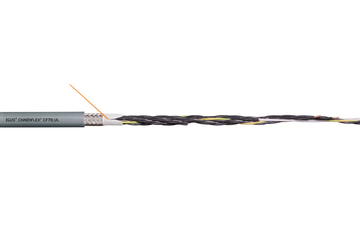

chainflex® control cable CF78.UL
chainflex® control cable CF78.UL
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 50267-2-1 UL/CSA<br>Style 11323 and 21223, 1.000 V, 80 °C UL/CSA<br>Style 11323 and 21223, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • CFRIP®
  • chainflex® class: 5.5.3.1

จาก 1.65 USD / ft

16 จาก 36 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

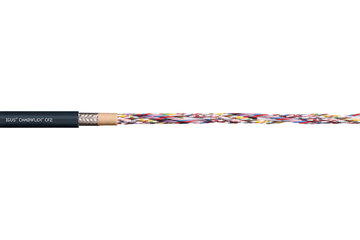

chainflex® control cable CF2
chainflex® control cable CF2
UV resistance<br>High Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 20317, 300 V, 80 °C UL/CSA<br>Style 10493 and 20317, 300 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 6.5.3.1

จาก 1.85 USD / ft

11 จาก 12 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

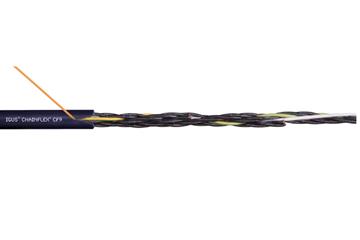

chainflex® control cable CF9
chainflex® control cable CF9
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1. CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 7.6.4.2

จาก 0.67 USD / ft

29 จาก 56 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

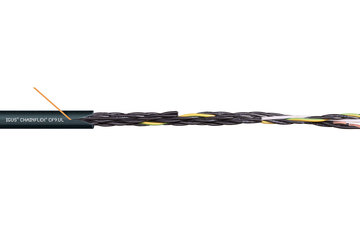

chainflex® control cable CF9.UL
chainflex® control cable CF9.UL
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10479 and 21529, 300 V, 90 °C UL/CSA<br>Cores &lt; 0.5 mm²: Style 10479 and 21529, 300 V, 90 °C<br />Cores ≥ 0.5 mm²: Style 10258 and 21387, 1000 V, 90 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.2

จาก 1.15 USD / ft

30 จาก 42 รายการสินค้าพร้อมที่จะจัดส่งใน 2 - 5 วันทำการ
ไปยังหน้าผลิตภัณฑ์
chainflex® control cable CF10
chainflex® control cable CF10
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 7.6.4.1

จาก 1.91 USD / ft

15 จาก 37 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์

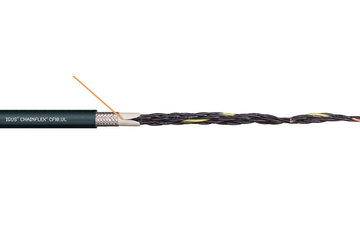

chainflex® control cable CF10.UL
chainflex® control cable CF10.UL
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10479 and 21529, 300 V, 90 °C UL/CSA<br>Cores &lt; 0.5 mm²: Style 10479 and 21529, 300 V, 90 °C<br />Cores ≥ 0.5 mm²: Style 10258 and 21387, 1000 V, 90 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01254 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.1

จาก 2.52 USD / ft

1 จาก 33 รายการสินค้าพร้อมที่จะจัดส่งภายใน 24 - 48 ชั่วโมง
ไปยังหน้าผลิตภัณฑ์
