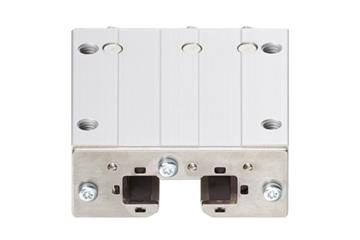

The dimensions of the drylin® T rail guides are the same as the usual recirculating ball bearing guides. They are available in seven installation sizes - users have the choice between three different carriage options: with manually or automatically adjustable clearance or an extremely robust heavy-duty version. The sliding elements are secure within the carriage body, especially suited when pulling down from the rail. The drylin® T carriage guides can handle loads up to 14,000 N, have a service life of up to 50,000 km and are extremely dirt-resistant.

The drylin® T rail guide are identical with regard to connector and hole dimensions:

• INA: KUVE -B • KWVE-B • KWE-B • KWSE / KUSE
• Bosch Rexroth: FNS • FLS • SNS • SLSS • NH • SLH • FNN • SNN
• THK: SHS-C/LC • HSR-A/LA • HSR-B/LB/BM
• Hiwin: HGW-CC • QHW-CC • RGW-CC • RGW-HC
• Rollon: MRS • MRS-L IKO: MRS • MRS-L
• Rodriguez: BRH-A • BRH-AL • MSR-E • MSR-LE
• Romani: HRC-FN
