iglidur® UW, sleeve bearing, mm

  • Low humidity absorption
  • Very good wear resistance under water
  • High media resistance

ไม่แน่ใจว่าพอดีหรือไม่

Calculate service life
Download CAD files
Free sample request
Ask our experts

Ask our experts

Stefan Loockmann-Rittich
iglidur® sample box & price list

iglidur® sample box & price list

Order free of charge
รายละเอียดผลิตภัณฑ์
iglidur® UW – The underwater endurance runner, for fast rotation under water
The best iglidur® bearings for underwater applications. Extremely wear-resistant under water, tested and maintenance-free. The first choice for pumping applications.

Typical application areas

Fluid technology

You can find further applications here:
Industry solutions

When to use it?
  • For underwater applications and in liquid media
  • For low loads
  • For high rotational speeds
  • For extreme wear resistance in media-lubricated continuous operation
When not to use it?
Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining

ประกาศนียบัตรรับรองและมาตรฐาน
RoHS compliant According to 2011/65/EU (RoHS 2)
ข้อมูลทางเทคนิค
อุปกรณ์เสริม
ดาวน์โหลด

โซลูชันอื่นๆ

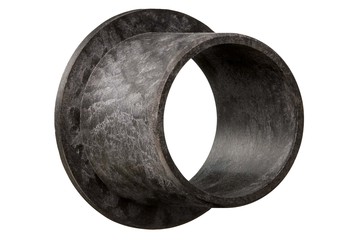

iglidur® UW, sleeve bearing with flange, mm
iglidur® UW, sleeve bearing with flange, mm

The underwater endurance runner, for fast rotation under water

จาก 1.86 USD/ชิ้น
iglidur® J, sleeve bearing, mm
iglidur® J, sleeve bearing, mm

The versatile endurance runner, highly resistant to wear on (nearly) all shafts with very low coefficients of friction

จาก 1.23 USD/ชิ้น
iglidur® X, sleeve bearing, mm
iglidur® X, sleeve bearing, mm

The chemical and temperature specialist, up to 150 MPa static

จาก 3.23 USD/ชิ้น
iglidur® UW500, sleeve bearing, mm
iglidur® UW500, sleeve bearing, mm

For hot liquids and fast, continuous movements

เมื่อร้องขอ
iglidur® H370, sleeve bearing, mm
iglidur® H370, sleeve bearing, mm

Extremely long service life under water and high media-resistance

จาก 1.43 USD/ชิ้น
