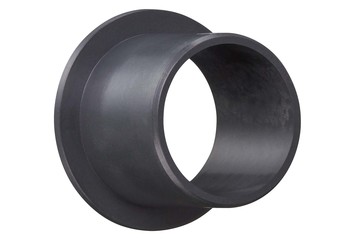

iglidur® A500 | The endurance runner at higher temperatures in the food sector
iglidur® A500 bearings are suitable for direct contact with foodstuffs. They exhibit an exceptionally good chemical resistance and are suitable for heavy-duty use in machinery for the food industry. Though iglidur® A500 is an extremely soft material, it possesses an excellent compressive strength even at high temperatures.

Typical application areas

Beverage industry
Food industry
Medical technology

You can find further applications here:
Industry solutions



When to use it? When FDA-compliance is required When high chemical resistance is required When good abrasion resistance is required Temperature resistant from -100 °C to +250 °C

When not to use it? When highest wear resistance is needed iglidur® X6, sleeve bearing with flange, mm iglidur® Z, sleeve bearing with flange, mm If no resistance to temperature or chemicals is required iglidur® A180, sleeve bearing with flange, mm iglidur® A200, sleeve bearing with flange, mm When a cost-effective universal bearing is required iglidur® G, sleeve bearing with flange, mm iglidur® P, sleeve bearing with flange, mm

Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining
